Compact 12V Electric Actuator 4500N IP66 Quiet Motion for Window & Trunk Control

Product Details:

Place of Origin:	China
Brand Name:	MaxM
Model Number:	LS-PAT-4

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	USD59 - USD129
Packaging Details:	Carton
Delivery Time:	2 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pieces/Month

Contact Now

Detailed Product Description

Product Name:	Low-Noise Linear Actuators	Application:	Equipment Racks,Air Intake & Ventilation,camper Van Roof Vents/ Skylights
Voltage:	12V / 24V DC	Max. Load Force:	4500N(Push); 2500N(Pull)
Limit Switch:	Built In	Signal Output(Optional):	Hall Sensors
IP Rating:	IP66	Stroke:	20mm - 600mm
Options:	Motor Brakes
Highlight:	Compact Electric Linear Actuator , Low Noise Linear Actuator 4500N , Compact Linear Actuator 12V

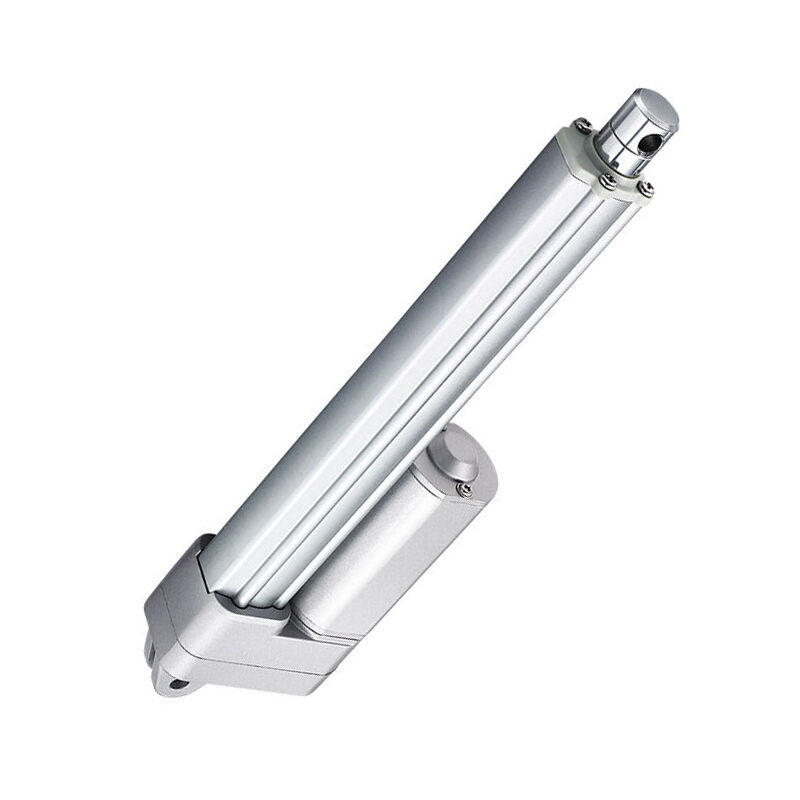

Low-noise Compact Electric Linear Actuator 4500N IP66 12V Quiet Motion For Vehicles

This compact electric actuator is ideal for applications requiring a small size and low noise, delivering up to 450 kg of pushing force. Its simple yet robust design, combined with IP-rated waterproof protection, makes it perfect for vehicles, furniture, and various lifting or automation projects.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:

Model	LS-PAT-4
Voltage	12VDC / 24V DC
Max. Load Force	4500N (Push);2500N(Pull)
Max. Speed at Full Load	4.9mm/s (at 4500N)
Max. Speet at Free-load	56mm/s (at 500N)
Stroke	20mm - 600mm
Limit Switch	Built in
Signal Output(Optional)	Hall Sensors / POT

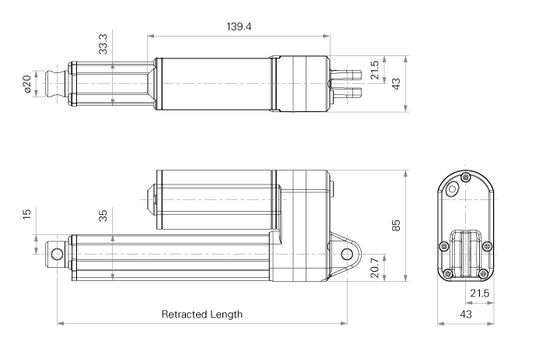

Retracted Length	≧Stroke + 112mm
IP Rating	IP66
Operation Temperature	-5℃ - +45℃
Color	Silver/ Black

Application:

Automated Tailgates & Liftgates, Tonneau Cover Lifts, Motorized Trunk Openers, Pop-up Sunroofs & Windows

Features:

Compact design for limit-space installations
Customizable stroke length and load capacity
Low-noise operation for quiet applications
IP66-ated for outdoor use

Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal
