Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows

Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows

  • Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows
  • Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows
  • Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows
  • Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows
Low Voltage DC Linear Actuator IP66 3000N For Greenhouse Automatic Ventilation Windows
Product Details:
Place of Origin: China
Brand Name: MaxM
Model Number: LS-INLA-4
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD89-USD299
Packaging Details: Carton
Delivery Time: 2 Weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000pieces/Month
Contact Now
Detailed Product Description
Working Voltage: DC 12V / 24V Load Capacity: 3000N
Stroke: 20mm - 500mm Limit Switch: Built In
Signal Output (Optional): Hall Sensors IP Rating: IP66
Working Temperature: -25℃ - +65℃ Max. Current: 5.5A (12V) ; 3.0A (24V)
Color: Grey Warranty: 18 Months
Highlight:

Low Voltage DC Linear Actuator

,

Low Voltage Linear Actuator IP66

,

Low Voltage Linear Actuator 3000N

Low Voltage DC Linear Actuator IP66 3000N for Greenhouse Automatic Ventilation Windows

Designed for greenhouse ventilation applications, this DC linear actuator features a sealed housing, low-voltage operation, and reliable performance in high-humidity and outdoor environments.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:
Model LS-INLA-4
Voltage 12VDC / 24VDC
Max. Load Force 3000N
Max. Speed at Full Load 3mm/s
Max. Speet at Free-load 6mm/s
Stroke 20mm - 500mm
Limit Switch Built-in
Signal Output(Optional) Hall Sensors

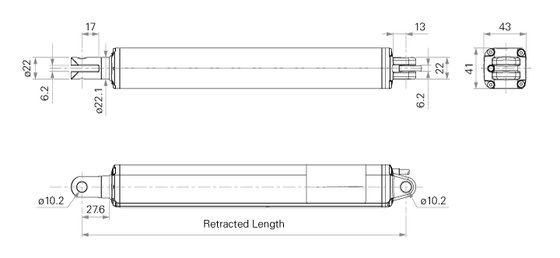

Retracted Length ≧Stroke + 248mm
IP Rating IP54 / IP66
Operation Temperature -25℃ - +65℃
Color Grey
Warranty 18 months
Features:
  • Built-in limit switches with optional Hall sensor feedback for accurate position detection
  • High-grade aluminum housing with IP66 rating ensures durability in harsh environments
  • Wide-Temperature Reliability ensure stable operation from –25°C to +65°C
  • Wind-Resistant Holding Force to prevent unwanted back-drive
Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal
