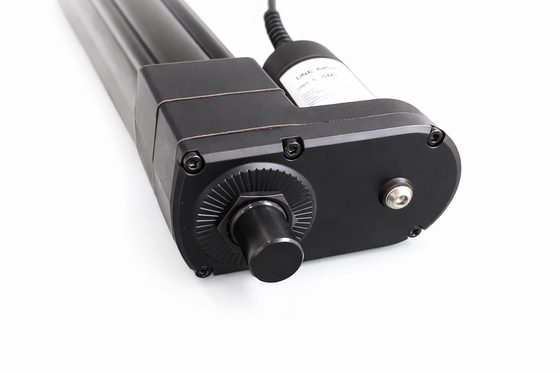

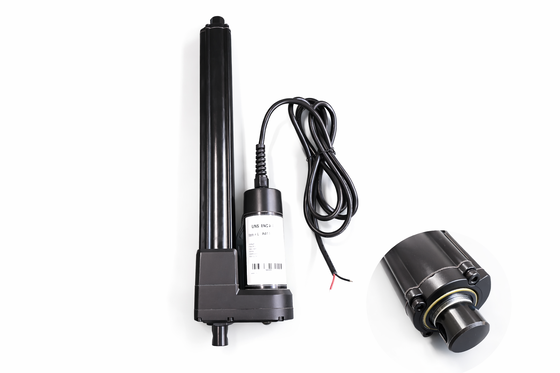

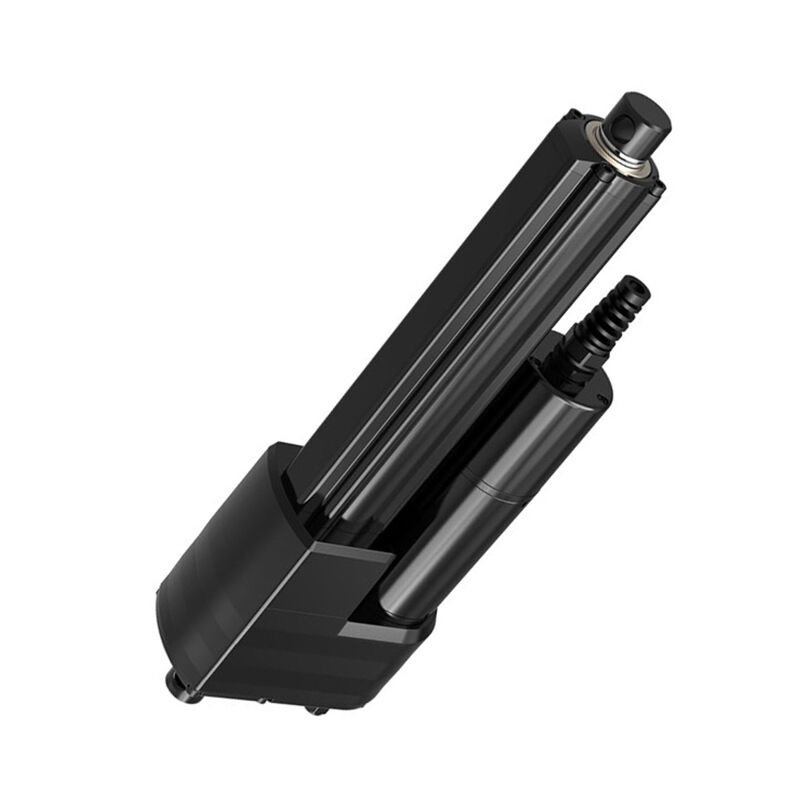

Name: IP69K Heavy Duty Electric Actuator Corrosion Proof 800KG 25% Duty Cycle
Brand: Guangzhou Maxm Electronics Co., Ltd.
SKU: LS-PAT-10
Price: 214.00 USD
Availability: InStock

Home Products Heavy Duty Linear Actuators

IP69K Heavy Duty Electric Actuator Corrosion Proof 800KG 25% Duty Cycle

Product Details:

Place of Origin:	China
Brand Name:	MaxM
Model Number:	LS-PAT-10

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	USD129-USD299
Packaging Details:	Carton
Delivery Time:	2 Weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pieces/Month

Contact Now

Detailed Product Description

Name:	Heavy Duty Linear Actuators	Working Voltage:	DC 12V / 24V / 36V / 48V
Max. Load Capacity:	8000N	Stroke:	20mm - 1000mm
Limit Switch:	Built In	Signal Output (Optional):	Hall Sensors / POT
IP Rating:	IP69K	Working Temperature:	-40℃ - +85℃
Options:	Overload Clutch, Motor Brake, Mechanical Brake	Spindle:	ACME Or Ball Screw
Operation:	Electric / Manual Drive	Warranty:	18 Months
Highlight:	IP69K Heavy Duty Electric Actuator , Heavy Duty Electric Actuator Corrosion Proof , Heavy Duty Electric Actuator 800KG

IP69K Corrosion-Proof Ultra-High Load Capacity 800KG Electric Actuators 25% Duty Cycle

This heavy duty electric actuator is designed for demanding industrial environments, featuring IP69K waterproof protection for reliable operation under harsh conditions. With a maximum thrust of up to 8000N, it offers both ball screw and ACME screw options to meet different load and speed requirements. It includes a manual override function for emergency operation and widely used in heavy-duty machinery, industrial equipment, and off-road vehicle applications.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:

Model	LS-PAT-10
Voltage	12VDC / 24VDC / 36VDC / 48VDC
Max. Load Force	ACME screw: 8000N ; BALL screw: 4500N
Max. Speed at Full Load	5mm/s (ACME screw); 14mm/s(Ball screw)
Max. Speet at Free-load	31mm/s (ACME screw); 59mm/s (Ball screw)
Stroke	20mm - 1000mm
Limit Switch	Built in
Signal Output(Optional)	Hall Sensors / POT
Retracted Length	ACME screw: ≧Stroke + 160mm (W/O POT) Ball screw: ≧Stroke + 201mm (W/O POT)
IP Rating	IP69K
Operation Temperature	-40℃ - +80℃
Manual Drive	Within
Options	Overload cluth; Motor brake; Mechanical brake
Color	Black

Features:

IP69K waterproof & heavy-duty design for industrial automation solutions
Delivers powerful and stable linear motion for heavy loads
Ball or ACME screw available with brake and overload protection
Stroke range 20–1000mm with emergency manual operation

Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal
