4500N Medical Grade Silent Actuator IP66 Waterproof Compact Health Tech Power

Product Details:

Place of Origin:	China
Brand Name:	MaxM
Model Number:	LS-PAT-4-BK

Payment & Shipping Terms:

Minimum Order Quantity:	2PCS
Price:	USD45 - USD129
Packaging Details:	Carton
Delivery Time:	2 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pieces/Month

Contact Now

Detailed Product Description

Product:	Silent Linear Actuator	Application:	Healthcare Furniture, Ergonomic Office,Smart Bedroom
Voltage:	24V DC	Max. Load Force:	4500N(Push); 2500N(Pull)
Limit Switch:	Built In	Signal Output(Optional):	Hall Sensors
IP Rating:	IP54 / IP66	Stroke:	Customizable
Options:	Motor Brakes
Highlight:	Medical Grade Silent Linear Actuator , Silent Linear Actuator Precision Control , Healthcare Equipment Silent Linear Actuator

Medical-Grade Silent Actuator Smooth Precision Control for Healthcare Equipment Dental Chairs

This compact, medical-grade linear actuator delivering smooth, ultra-quiet precision motion up to 4500N, ideal for healthcare equipment and dental chairs requiring reliable and hygienic performance.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:

Item	Parameters
Product Code	LS-PAT-4 Series
Rated Input Voltage	12V DC or 24V DC
Maximum Push Force	4500 N
Maximum Pull Force	2500 N
Travel Speed (Full Rated Load)	4–5 mm/s under 4500 N
Travel Speed (Light Load)	Up to 56 mm/s at 500 N
Available Stroke Range	20 mm to 600 mm
End-of-Stroke Protection	Integrated limit switches
Feedback Options	Hall effect sensors or potentiometer (optional)

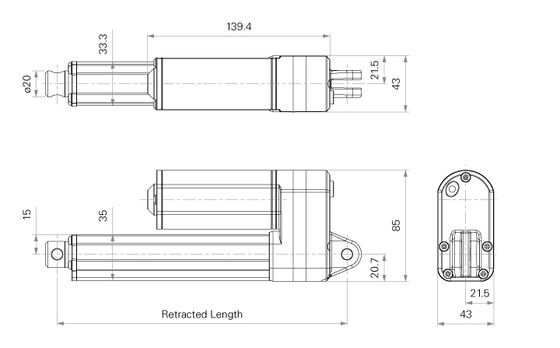

Minimum Installation Length	Stroke length + 112 mm
Protection Class	Up to IP66
Housing Finish	Black

Applications:

A perfect fit for residential luxury, allowing for whisper-quiet movement in adjustable smart beds and hidden furniture lift systems for a truly modern living experience.

Features:

Supports up to 4500N for stable and secure lifting applications
Low-noise design ensures users comfort in home and dental environments
Dust-tight and water-resistant housing for enhanced durability and easy cleaning
