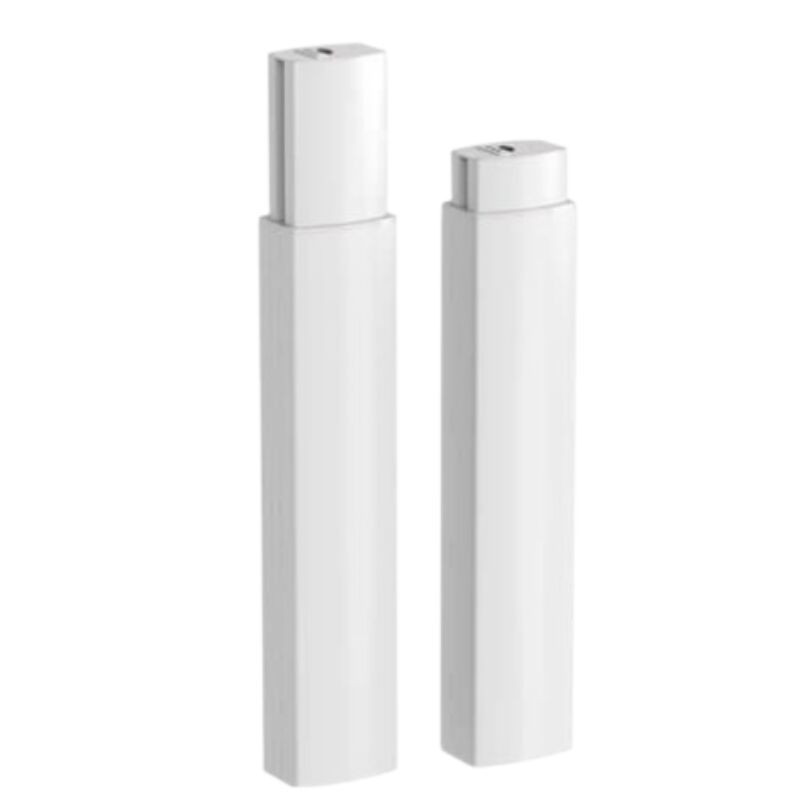

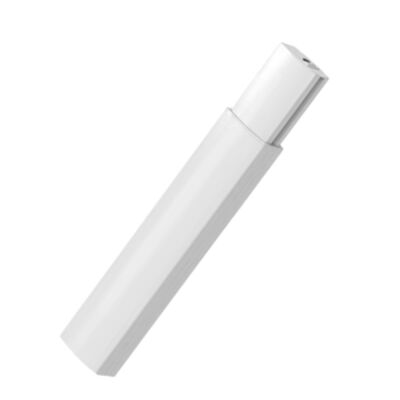

2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm

2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm

  • 2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm
  • 2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm
  • 2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm
2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm
Product Details:
Place of Origin: China
Brand Name: MaxM
Certification: CE
Model Number: LS-LC50
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: 199USD-499USD
Packaging Details: Carton
Delivery Time: 2 WEEKS
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000 SETS
Contact Now
Detailed Product Description
Control Options: Push Button / Remote Control / PLC Voltage: 24V DC
Color: Silver Speed: 32 Mm/s To 49 Mm/s
Load Force: 1150N Material: Aluminum Alloy
Limit Switch: Built In Duty Cycle: 10%
Stroke Length: 200 Mm To 900 Mm Outer Profile: 2 Stage



         2-Stage Electric Lifting Column 24V DC 1000N 30mm/s High DBM 542.5Nm



This electric lifting column features a high dynamic bending moment, delivering exceptional stability. Its elegant outer tubes are crafted from aluminum alloy, and an integrated AC plug enables direct connection to computers and TVs. These features make it widely suitable for healthcare and smart home applications.


*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs


Specifications:
Model LS-LC50
Voltage 24VDC
Max. Load Force 1150N
Max. Speed at Full Load 32mm/s
Max. Speet at Free-load 49mm/s
Max. Dynamic bending moment 542.5Nm
Max. Static bending moment 1085Nm
Stroke 200mm - 900mm
Limit Switch Built in
Signal Output(Optional) Hall Sensors
Retracted Length ≧Stroke+ 500mm
Section 2-stage
Operation Temperature -5℃ - +45℃
Color Silver

Features:
  • High Dynamic Bending Moment – Delivers exceptional stability under dynamic loads
  • Elegant Aluminum Alloy Construction – crafted from aluminum alloy for durability and aesthetics.
  • Integrated AC Plug – Enables direct connection to computers and TVs for simplified setup.


Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal
