| Place of Origin: | China |
| Brand Name: | MaxM |
| Certification: | CE,FCC |
| Model Number: | LS-RSK-H1+LS-L38/52 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 339 - USD 799 |
| Packaging Details: | Carton |
| Delivery Time: | 15-20 Work Days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 1000 Pieces / Month |
| Name: | Tubular Actuator Sync Control System | Voltage: | 12V / 24V DC |
|---|---|---|---|
| Operation: | Wireless Remote Control And Wired Rocker Switch | Remote Mode: | Momentary / Latching |
| Protection: | Built In | Guarantee: | 24 Months |
| Customization: | Yes | Max. Thrust: | 6000N |
| Stroke: | Customzied |

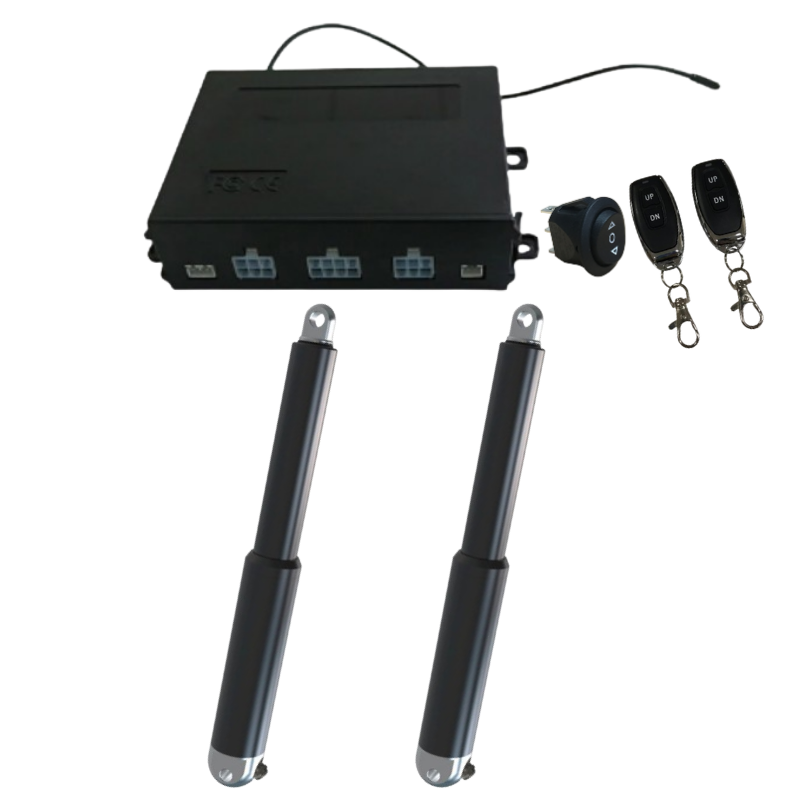

Upgrade your smart home or industrial automation with our Tubular Linear Actuator Kit. Available in 12V or 24V, it comes with a synchronization control feature that allows two actuators to work seamlessly together – perfect for shutters, awnings, and skylights. Its compact tubular body fits into narrow mounting spaces, and with IP65 waterproof protection, it performs reliably even in outdoor environments. Simple to install and built to last, it's the ideal solution for automated shading and ventilation systems.
| Item | Controller Specification |
|---|---|
| Model No. | LS-RSK-H1 |
| Input Voltage | Wide voltage 12V-28V DC in on box |
| Max Current Load | 12.5A per channel, withstand Industrial actuator |
| Wireless Frequency | 433.92 MHz |
| Control Distance | Up to 30 m |
| Control Method | Wireless remote + Wired switch |
| Control Type | Momentary / Latching Optional |
| Net Weight | 0.3 kg |
| Warranty Period | 12 Months |
| Item | Industrial Actuator specifications |
| Model No. | LS-L38/L52 |
| Voltage | 12V / 24V DC |
| Max. load | 6000N |
| Stroke | 50mm - 1000mm |
| Limit switch | Built in |
| Signal output(Optional) | Hall sensors |
| Working temp. | -20℃ - 65℃ |
| IP rating | IP66 / IP67 |
| Application | Automated shutters, awnings, skylights |
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: The controller is a universal product, whereas the lifting columns can be customized. The typical lead time for samples is 15-20 days
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
![]()
