Name: 17kN Heavy-Duty Actuator 24V DC CANbus Protocol Industrial Actuator IP67 Waterproof
Brand: Guangzhou Maxm Electronics Co., Ltd.
SKU: LS-HD6
Price: 379.00 USD
Availability: InStock

Home Products Heavy Duty Linear Actuators

17kN Heavy-Duty Actuator 24V DC CANbus Protocol Industrial Actuator IP67 Waterproof

Product Details:

Place of Origin:	China
Brand Name:	MaxM
Model Number:	LS-HD6

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	USD259-USD499
Packaging Details:	Carton
Delivery Time:	2 Weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pieces/Month

Contact Now

Detailed Product Description

Working Voltage:	DC 12V / 24V / 36V / 48V	Max. Load Capacity:	17000N
Stroke:	50mm - 1000mm	Limit Switch:	Built In
Signal Output (Optional):	Hall Sensors	IP Rating:	IP67
Working Temperature:	-10℃/-40℃ - +65℃	Operation:	Electric / Manual Drive
Warranty:	12 Months	Product:	Heavy-duty Electric Actuators
Highlight:	17000N Heavy Duty Linear Actuators , Heavy Duty Linear Actuators 3800lbs , 24V DC Linear Actuator Waterproof

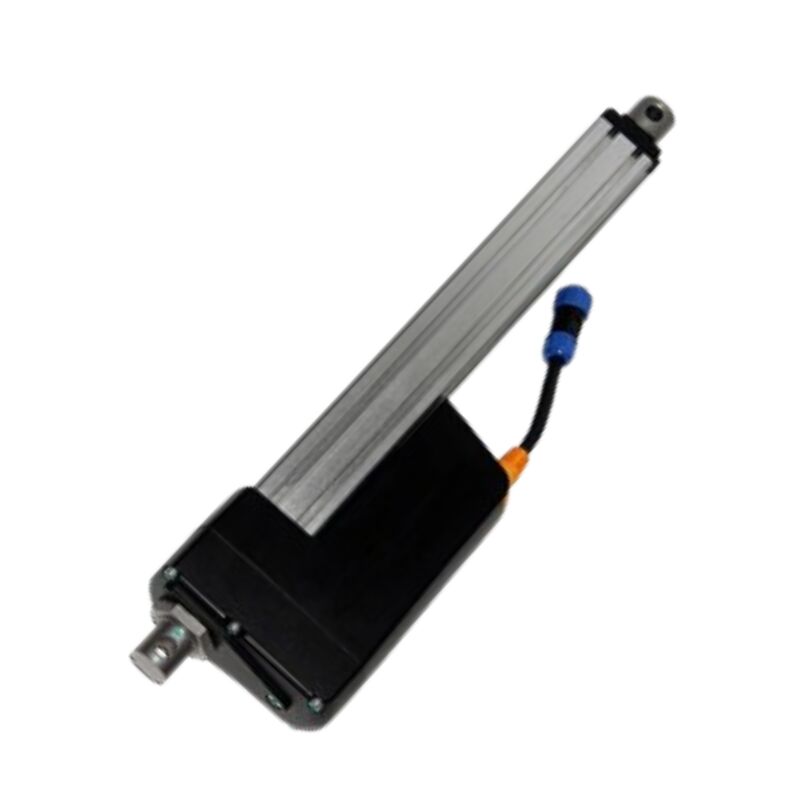

17000N Ultra Thrust Electric Actuator 24V DC IP67 Rated w/ Manual Crank

This 24V DC high-force electric actuator delivers up to 17000N (3800 lbs) of powerful thrust, featuring IP67 waterproof protection and a manual crank override, making it ideal for demanding industrial and outdoor automation applications.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:

Model	LS-HD6
Voltage	12VDC/ 24VDC / 36VDC / 48VDC
Max. Load Force	17000N
Max. Speed at Full Load	5mm/s (at 17000N)
Max. Speet at Free-load	35mm/s (at 3500N)
Stroke	50mm - 1000mm
Limit Switch	Built in
Signal Output(Optional)	Hall Sensors
Retracted Length	≧Stroke + 200mm
IP Rating	IP67
Operation Temperature	-10℃/-40℃ - +65℃
Control Options	Synchronization / Remote control / CANbus/ Modbus

Features:

Allows manual operation during power outages or emergency situations due to the manual crank override
Fully sealed housing IP67 protection against dust and water for reliable outdoor and industrial use
Ultra-High Thrust Performance for heavy-duty lifting and pushing tasks

Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal

17kN Heavy-Duty Actuator 24V DC CANbus Protocol Industrial Actuator IP67 Waterproof
