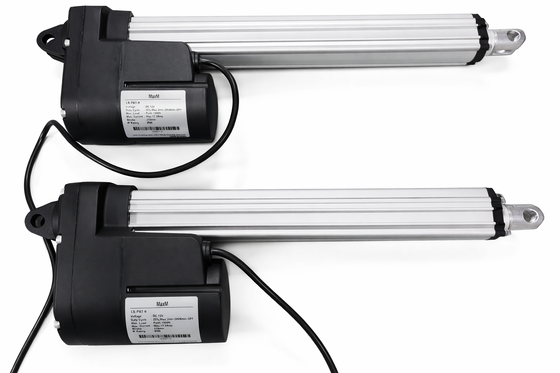

1800 Lbs Electric Linear Actuator 12v IP69K Pressure Wash Proof For Heavy Construction

1800 Lbs Electric Linear Actuator 12v IP69K Pressure Wash Proof For Heavy Construction

Product Details:
Place of Origin: China
Brand Name: MaxM
Model Number: LS-PAT-8
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD129-USD299
Packaging Details: Carton
Delivery Time: 2 Weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000pieces/Month
Contact Now
Detailed Product Description
Name: Heavy Duty Linear Actuators Working Voltage: DC 12V / 24V / 36V / 48V
Max. Load Capacity: 8000N Stroke: 20mm - 1000mm
Limit Switch: Built In Signal Output (Optional): Hall Sensors / POT
IP Rating: IP54 / IP66 / IP69 Working Temperature: -40℃ - +80℃
Max. Current: 5.0A (12V) ; 2.5A (24V) Operation: Electric / Manual Drive
Warranty: 12 Months
Highlight:

1800 Lbs Electric Linear Actuator

,

Electric Linear Actuator 12v IP69K

,

12v Electric Linear Actuators

1800 lbs Max-Thrust Electric Actuator IP69K Pressure-Wash Proof for Heavy Construction

This high-thrust electric actuator is designed for heavy-duty industrial applications, delivering up to 800 kg of pushing force. Its robust construction and IP69-rated waterproof protection ensure reliable, smooth operation even in the most demanding environments. The actuator supports both electric control and a manual-drive function, providing added safety and usability during power outages.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:
Model LS-PAT-8
Voltage 12VDC / 24VDC / 36VDC / 48VDC
Max. Load Force 8000N (Push);4000N(Pull)
Max. Speed at Full Load 5.5mm/s (at 8000N)
Max. Speet at Free-load 52.5mm/s (at 1000N)
Stroke 25mm - 1000mm
Limit Switch Built in
Signal Output(Optional) Hall Sensors / POT
Retracted Length ≧Stroke + 132mm
IP Rating IP69K
Operation Temperature -40℃ - +80℃
Color Black
Features:
  • Robust construction for demanding applications
  • Customizable stroke length and load capacity
  • Multiple voltage and signal output options
  • Manual-drive function for added safety
Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal

1800 Lbs Electric Linear Actuator 12v IP69K Pressure Wash Proof For Heavy Construction 0

1800 Lbs Electric Linear Actuator 12v IP69K Pressure Wash Proof For Heavy Construction 1
