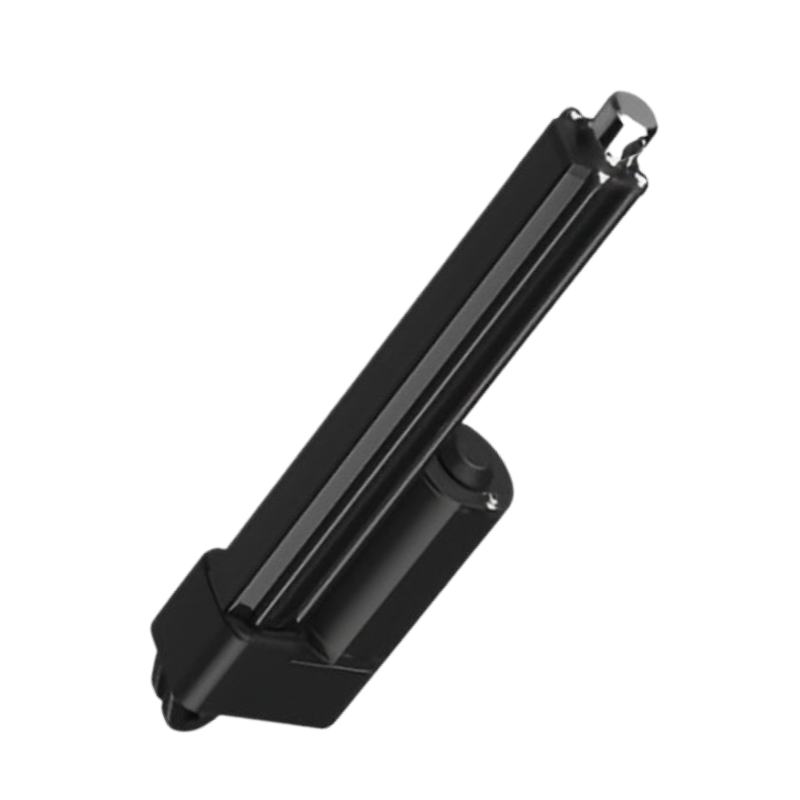

Name: Medical Grade Silent Linear Actuator Smooth Precision Control For Healthcare Equipment
Brand: Guangzhou Maxm Electronics Co., Ltd.
SKU: LS-PAT-4-BK
Price: 124.00 USD
Availability: InStock

Home Products Electric Linear Actuators

Medical Grade Silent Linear Actuator Smooth Precision Control For Healthcare Equipment

Product Details:

Place of Origin:	China
Brand Name:	MaxM
Model Number:	LS-PAT-4-BK

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	USD49 - USD199
Packaging Details:	Carton
Delivery Time:	2 weeks
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000pieces/Month

Contact Now

Detailed Product Description

Product:	Silent Linear Actuator	Voltage:	24V DC
Max. Load Force:	4500N(Push); 2500N(Pull)	Limit Switch:	Built In
Signal Output(Optional):	Hall Sensors	IP Rating:	IP54 / IP66
Stroke:	Customizable	Options:	Motor Brakes
Application:	Medical, Office, Bedroom
Highlight:	Medical Grade Silent Linear Actuator , Silent Linear Actuator Precision Control , Healthcare Equipment Silent Linear Actuator

Medical-Grade Silent Actuator Smooth Precision Control for Healthcare Equipment Dental Chairs

This compact, medical-grade linear actuator delivering smooth, ultra-quiet precision motion up to 4500N, ideal for healthcare equipment and dental chairs requiring reliable and hygienic performance.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:

Item	Specification
Product Code	LS-PAT-4 Series
Rated Input Voltage	12V DC or 24V DC
Maximum Push Force	4500 N
Maximum Pull Force	2500 N
Travel Speed (Full Rated Load)	4–5 mm/s under 4500 N
Travel Speed (Light Load)	Up to 56 mm/s at 500 N
Available Stroke Range	20 mm to 600 mm
End-of-Stroke Protection	Integrated limit switches
Feedback Options	Hall effect sensors or potentiometer (optional)
Minimum Installation Length	Stroke length + 112 mm
Protection Class	Up to IP66
Housing Finish	Black

Features:

Supports up to 4500N for stable and secure lifting applications
Low-noise design ensures users comfort in home and dental environments
Dust-tight and water-resistant housing for enhanced durability and easy cleaning

Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal

Medical Grade Silent Linear Actuator Smooth Precision Control For Healthcare Equipment 0
