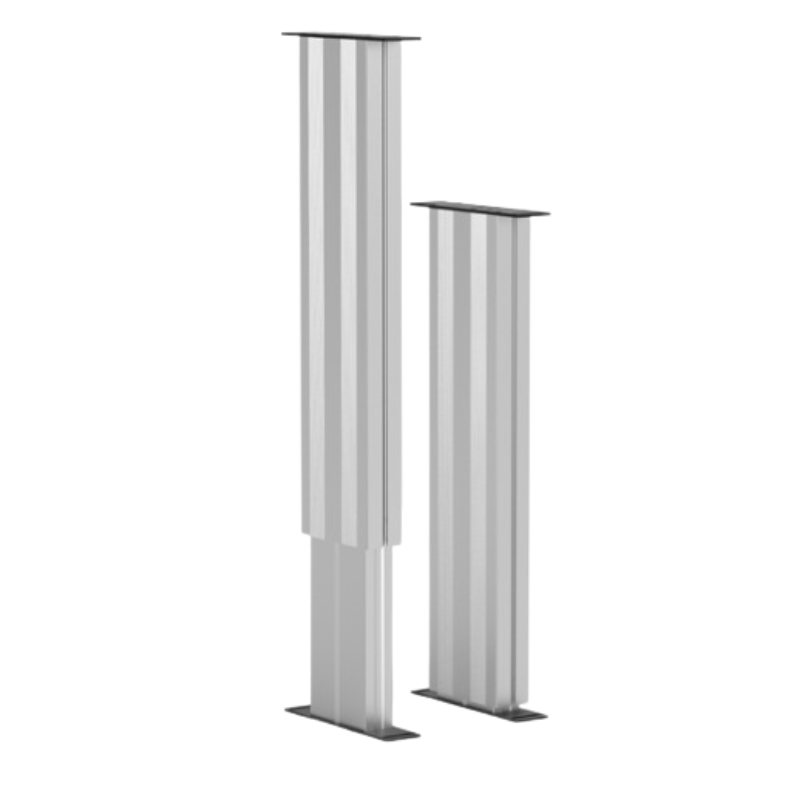

770lbs Lifting Pillar 2 Stage Precise Height Adjustable Column For Industrial Workstations

770lbs Lifting Pillar 2 Stage Precise Height Adjustable Column For Industrial Workstations

  • 770lbs Lifting Pillar 2 Stage Precise Height Adjustable Column For Industrial Workstations
770lbs Lifting Pillar 2 Stage Precise Height Adjustable Column For Industrial Workstations
Product Details:
Place of Origin: China
Brand Name: MaxM
Model Number: LS-GM-LC2-B
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: USD299 - USD499
Packaging Details: Carton
Delivery Time: 2 weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000pieces/Month
Contact Now
Detailed Product Description
Product Name: Lifting Pillar Voltage: DC 12V / 24V
Max. Load Force: 2500N Stroke: 100mm -900mm
Limit Switch: Built In Signal Output(Optional): Hall Sensor / POT
Outer Profile: 2 Stage Mini. Retracted Length: ≥ Stroke+200mm
Highlight:

770lbs Lifting Pillar

,

Lifting Pillar 2 Stage

,

Precise Height Adjustable Column

High-Stability 770lbs Lifting Pillar 2 Stage Precise Height Adjustment for Industrial Workstations

This robust 2-stage telescopic pillar is engineered for heavy-duty vertical positioning, offering exceptional structural rigidity and high-velocity travel for advanced workstation ergonomics and industrial automation.

*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:
Model Identification LS-GM-LC2-B
Power Input Requirement Dual-Voltage Adaptive (12V / 24V DC)
Peak Vertical Lift Capacity 770 lbs (3500N / 350KG)
Full-Load Operating Velocity 0.20 in/s (5mm/s) at Maximum Thrust
High-Speed Efficiency 1.69 in/s (43mm/s) @ 800N Light Load
Dynamic Torque Resistance 400Nm Bending Moment Capacity
Stationary Load Stability 600Nm Static Moment Rating
Extension Range (Stroke) Customizable Travel: 100mm to 900mm
Travel End Protection Integrated Internal Limit Cut-off Switches
Position Feedback Logic Optional Hall Effect Sensors or POT Output
Installation Dimension Minimum Profile: Stroke + 200mm
Telescopic Profile 2-Section Precision Extrusion
Acoustic Footprint Quiet Drive Operation (48dB – 58dB)
Chassis Color Options Premium Anodized Silver / Stealth Black

Features:
  • Superior Moment Handling, making it perfect for off-center loads on large assembly tables
  • Featuring a high-speed free-load velocity of 43mm/s, offering a rapid deployment
  • Designed for professional environments, it maintains a low noise profile (under 58dB)
Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal
