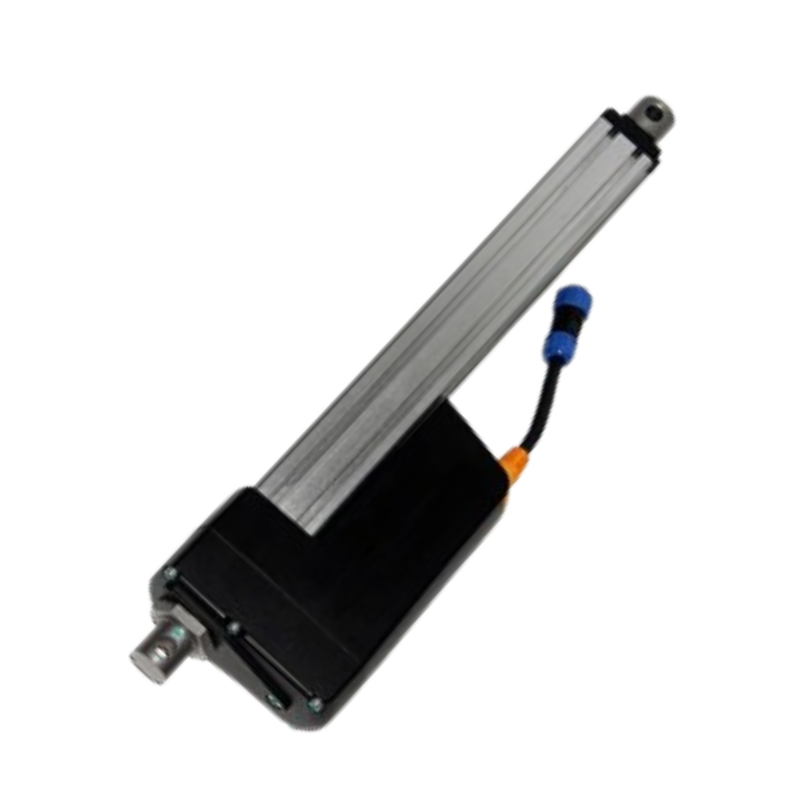

17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank

17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank

  • 17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank
17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank
Product Details:
Place of Origin: China
Brand Name: MaxM
Model Number: LS-HD6
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD199-USD499
Packaging Details: Carton
Delivery Time: 2 Weeks
Payment Terms: L/C,T/T,Western Union
Supply Ability: 1000pieces/Month
Contact Now
Detailed Product Description
Working Voltage: DC 12V / 24V / 36V / 48V Max. Load Capacity: 17000N
Stroke: 50mm - 1000mm Limit Switch: Built In
Signal Output (Optional): Hall Sensors IP Rating: IP67
Working Temperature: -40℃ - +65℃ Operation: Electric / Manual Drive
Warranty: 12 Months Name: Heavy Duty Linear Actuators
Highlight:

17000N Heavy Duty Linear Actuators

,

Heavy Duty Linear Actuators 3800lbs

,

24V DC Linear Actuator Waterproof

17000N Ultra-Heavy-Duty Electric Actuator 3800lbs High-Thrust 24V DC IP67 Waterproof with Manual Crank

This 24V DC high-force electric actuator delivers up to 17000N (3800 lbs) of powerful thrust, featuring IP67 waterproof protection and a manual crank override, making it ideal for demanding industrial and outdoor automation applications.

*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:
Model LS-HD6
Voltage 12VDC/ 24VDC / 36VDC / 48VDC
Max. Load Force 17000N
Max. Speed at Full Load 5mm/s (at 17000N)
Max. Speet at Free-load 35mm/s (at 3500N)
Stroke 50mm - 1000mm
Limit Switch Built in
Signal Output(Optional) Hall Sensors
Retracted Length ≧Stroke + 200mm
IP Rating IP67
Operation Temperature -40℃ - +65℃
Features:
  • Allows manual operation during power outages or emergency situations due to the manual crank override
  • Fully sealed housing IP67 protection against dust and water for reliable outdoor and industrial use
  • Ultra-High Thrust Performance for heavy-duty lifting and pushing tasks
Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal



17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank 0

17000N Heavy Duty Linear Actuators 3800lbs High Thrust 24V DC IP67 Waterproof With Manual Crank 1
