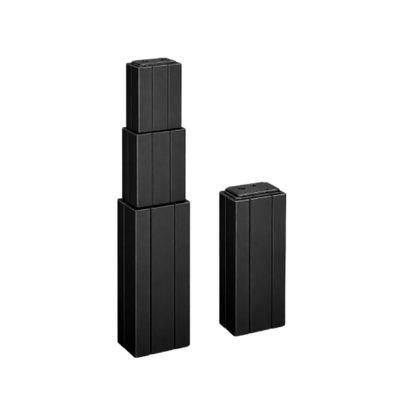

Heavy-Duty Black Lifting Column 3-Stage 200KG Load for Industrial Automation

Heavy-Duty Black Lifting Column 3-Stage 200KG Load for Industrial Automation

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: MaxM
Model numarası: LS-PAT-71
Ödeme & teslimat koşulları:
Min sipariş miktarı: 2
Fiyat: USD189 - USD399
Ambalaj bilgileri: karton
Teslim süresi: 2 hafta
Ödeme koşulları: L/C,T/T,Western Union
Yetenek temini: 1000 adet/ay
İletişim
Detaylı ürün tanımı
İsim: Elektrikli kaldırma sütunları Gerilim: DC 12V / 24V
Yük Kapasitesi: 200kg Felç: 250mm - 1200mm
Sınır anahtarı: Dahili Sinyal çıkışı (isteğe bağlı): Hall sensörü
Renk: Gümüş / Siyah Dış profil: Dikdörtgen, 3 Kademeli
Maks. dinamik bükülme anı: 250 Nm Maks. Statik bükülme anı: 500nm

Heavy-Duty Black Lifting Column 3-Stage 200KG Load for Industrial Automation

Engineered for premium industrial ergonomics, this black 3-stage lifting column delivers 1200mm custom travel length paired with a robust 2000N (200KG) medium-payoff capacity for smooth, uncompromised vertical motion. Its heavy-duty precision makes it the ideal structural choice for automating high-load factory workbenches, executive ergonomic desks, precision packing tables, and industrial material handling platforms.

*This electric lifting column actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs

Specifications:
Model LS-PAT-71
Voltage 12VDC / 24VDC
Max. Load Force 2000N
Max. Speed at Full Load 11.5mm/s
Max. Speet at Free-load 41mm/s
Max. Dynamic bending moment 250Nm
Max. Static bending moment 500Nm
Stroke 250mm - 1200mm
Limit Switch Built in
Signal Output(Optional) Hall Sensors
Retracted Length ≧Stroke/2 + 150mm
Section 3-stage
Operation Temperature -5℃ - +45℃
Color Silver / Black
Features:
  • Customizable Extended Stroke from 250mm to 1200mm) from compact equipment lifts to extra-tall industrial workstations.
  • Optimized 2000N Load Capacity, providing the perfect mechanical payoff for light-to-medium automation projects and ergonomic machinery.
  • Available in professional anodized silver or classic powder-coated black finishes, allowing seamless integration into high-end medical offices, corporate workspaces, or rugged factory floors.
  • Premium Architectural Profile & Stable Motion
Questions and Answers:

Q: Is it possible to get a sample?

A: Yes, we can provide samples for quality and performance testing.

Q: Is the product ready for dispatch?

A: No. We customize the lifting column per your requirements, leading time is usually 2 weeks.

Q: Do you provide after-sales service?

A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.

Q: What payment methods do you accept?

A: We accept bank TT, L/C, and PayPal

Heavy-Duty Black Lifting Column 3-Stage 200KG Load for Industrial Automation 0

Heavy-Duty Black Lifting Column 3-Stage 200KG Load for Industrial Automation 1
